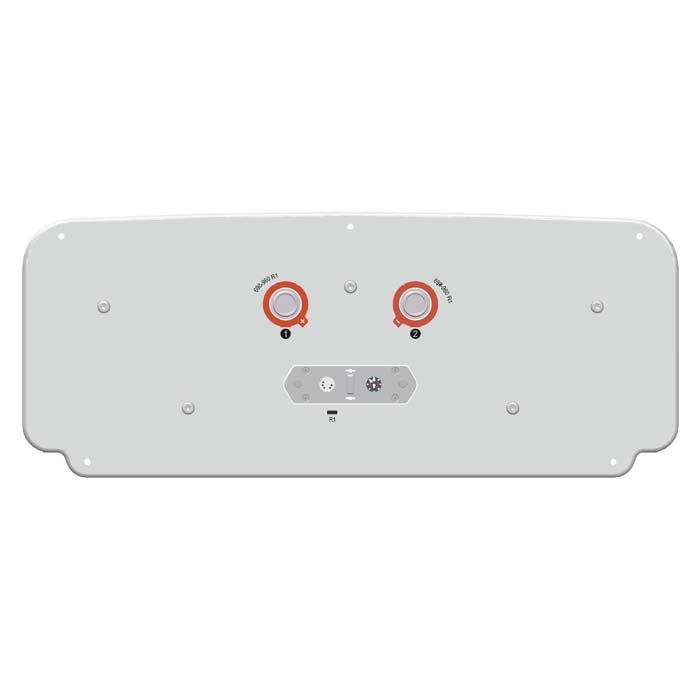

1LB 33° 19.5dBi Single Band Antenna
Electrical Specifications
Frequency Range (MHz): | 698-960(R1) | ||
698-862 | 862-894 | 894-960 | |
Gain (dBi): | 18.0±0.5 | 18.7±0.5 | 19.2±0.5 |
Return Loss (dB): | >14 (VSWR<1.5) | ||
Polarization: | ±45° | ||
Horizontal 3dB beamwidth (°): | 39 | 35 | 30 |
Vertical 3dB beamwidth (°): | 9.2 | 8.0 | 7.0 |
Electrical Downtilt (°): | 2-12 Independently Continuously Adjustable | ||
RET Type: | Cascade SRET, AISG 2.0, Upgradeable | ||
1st Upper Sidelobe Suppression (dB): | 15 | 15 | 15 |
Front to Back Ratio @180±30°(dB): | 24 | 24 | 25 |
Cross Polar Ratio 0° (dB): | 15 | 15 | 15 |
Cross Polar Ratio ±15° (dB): | 10 | 10 | 10 |
Isolation Port to Port (dB): | >28 | ||
Max. Power Per Port (W): | 250 | ||
Intermodulation IM3 (dBc): | <-150 (2×43 dBm) | ||
Impedance (ohm): | 50 | ||
Lightning Protection: | DC Grounded | ||
Connector Type: | 2×4.3-10 Female | ||
Mechanical Data
Antenna Dimensions (mm) : | 2490×498×197 |
Packing Dimensions (mm) : | 2760×585×290 |
Antenna Net Weight (kg) /Bracket (kg): | 30.5/5.7 |
Antenna Gross Weight (kg) : | 42.5 |
Radome Material: | Fiberglass |
Pipe OD (mm): | 50-114 |
Mounting Kits (Included): | BA.K.04.00069471, Adjustable Downtilt 0°-8°(0°-8°in 1°steps) |
