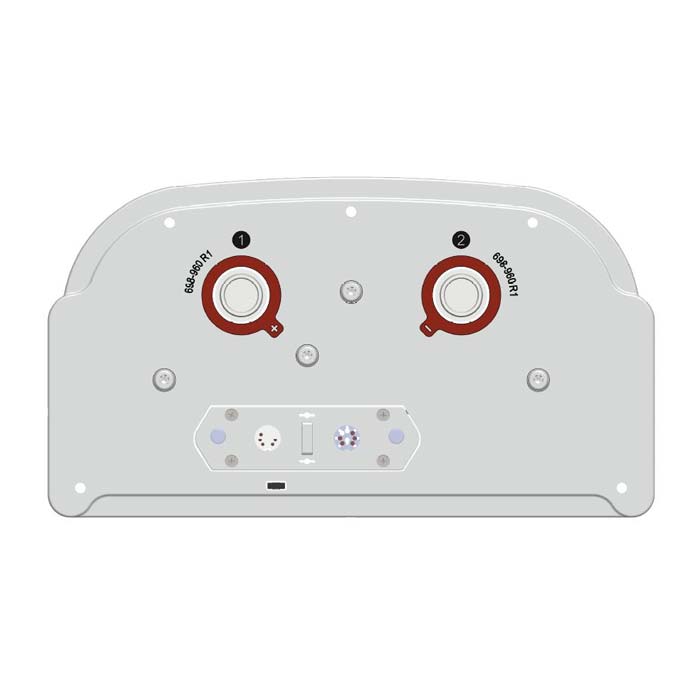

1LB 90° 15.5dBi Single Band Antenna
Electrical Specifications
Frequency Range (MHz): | 698-960(R1) | ||
698-862 | 862-894 | 894-960 | |
Gain (dBi): | 14.4±0.5 | 15.0±0.5 | 15.3±0.5 |
Return Loss (dB): | >14(VSWR<1.5) | ||
Polarization: | ±45° | ||
Horizontal 3dB Beamwidth (°): | 88 | 85 | 83 |
Vertical 3dB Beamwidth (°): | 8.5 | 7.5 | 7.0 |
Electrical Downtilt (°): | 0-10 Independently Continuously Adjustable | ||
RET Type: | Cascade SRET, AISG 2.0, Upgradeable | ||
1stUpper Sidelobe Suppression (dB): | 15 | 15 | 15 |
Front to Back Ratio (dB): | 22 | 23 | 24 |
Isolation Port to Port (dB): | >28 | ||
Max. Power Per Port (W): | 250 | ||
Intermodulation IM3 (dBc): | <-150 (2×43 dBm) | ||
Impedance (ohm): | 50 | ||
Lightning Protection: | DC Grounded | ||
Connector Type: | 2×4.3-10 Female | ||
Mechanical Data
Antenna Dimensions (mm): | 2495×270×149 |
Packing Dimensions (mm): | 2765×355×240 |
Antenna Net Weight/Bracket (kg): | 19/5.9 |
Antenna Gross Weight (kg): | 29 |
Radome Material: | Fiberglass |
Pipe OD (mm): | 50-115 |
Mounting Kits (Included): | BA.K.04.00069091, Adjustable Downtilt 0-10° |
