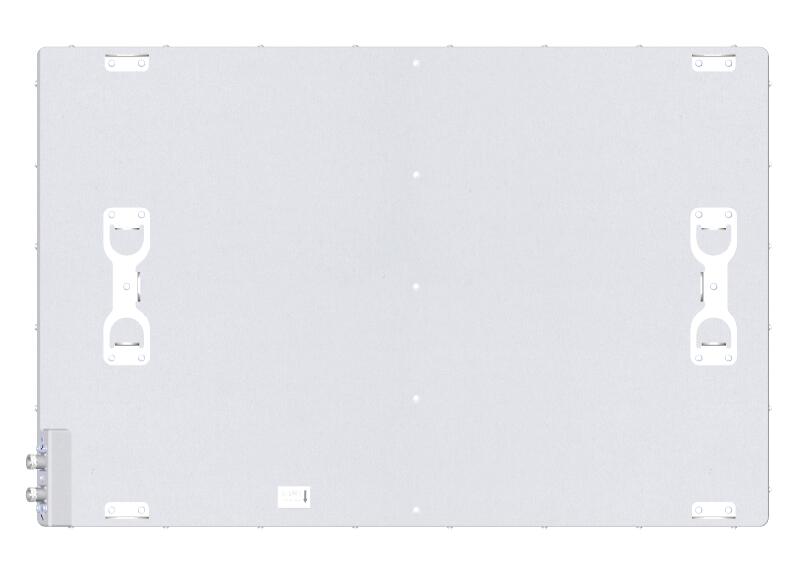

1LB2MB 50° 10.5/9.5/9dBi 2 Ports Stadium Antenna
Electrical Specifications
Frequency Range (MHz): | 790-960 | 1710-2170 | 2300-2690 |
Gain (dBi): | 10.5±0.5 | 9.5±0.5 | 9.0±0.5 |
Return Loss (dB): | >14 (VSWR<1.5) | ||
Polarization: | ±45° | ||
3dB(j=00)Horizontal Beamwidth (°): | 50.0 | 48.0 | 48.0 |
20dB(j=00)Horizontal Beamwidth (°): | 82.0 | 82.0 | 82.0 |
3dB(j=900)Vertical Beamwidth (°): | 50.0 | 48.0 | 48.0 |
20dB(j=900)Vertical Beamwidth (°): | 82.0 | 82.0 | 82.0 |
(j=00)Horizontal Sidelobe Suppression (dB): | 20 | 20 | 20 |
(j=900)Vertical Sidelobe Suppression (dB): | 20 | 20 | 18 |
Electrical Downtilt (°): | 0 Fixed | ||
Front to Back Ratio at 180±300 (dB): | 27 | 30 | 30 |
CPR at Boresight(dB): | 20 | 20 | 20 |
Isolation Port to Port (dB): | 28 | 28 | 28 |
Intermodulation IM3 (dBc): | <-150 (2×43 dBm) | ||
Impedance (ohm): | 50 | ||
Max. Power Per Port (W): | 100 | ||
Lightning Protection: | DC Grounded | ||
Connector Type: | 2×7/16 DIN Female | ||
Mechanical Data
Antenna Dimensions (mm): | 1354×888×110 |
Packing Dimensions (mm): | 1512×1041×234 |
Antenna Net Weight (kg): | 28.5/5 |
Antenna Gross Weight (kg): | 43.5 |
Radome Material: | ASA, UV Resistant |
Pipe OD (mm): | 70-114 |
Mounting Kits (Included): | BA.K.04.00003, Fixed Tilt Clamps |
