1LB2MB 65° 17/18dBi Multi-band Antenna
Electrical Specifications
Frequency Range (MHz): | 698-960(R1) | 2×1710-2690 (Y1,Y2) | ||||
698-806 | 806-880 | 880-960 | 1710-2170 | 2300-2490 | 2490-2690 | |
Gain (dBi): | 15.7±0.5 | 16.2±0.5 | 16.5±0.5 | 16.8±0.5 | 17.5±0.5 | 17.8±0.5 |
Return Loss (dB): | >14 (VSWR<1.5) | |||||
Polarization: | ±45° | |||||
Horizontal 3dB Beamwidth (°): | 70±5 | 68±5 | 66±5 | 68±5 | 62±5 | 58±5 |
Vertical 3dB Beamwidth (°): | 9.0 | 8.0 | 7.0 | 6.5 | 5.0 | 4.5 |
Electrical Downtilt (°): | 0-10 Independently Continuously Adjustable | 0-10 Independently Continuously Adjustable | ||||
RET Type: | Cascade SRET, AISG 2.0, Upgradeable | |||||
1stUpper Sidelobe Suppression (dB): | 15 | 15 | 15 | 15 | 15 | 15 |
Front to Back Ratio (dB): | 22 | 23 | 24 | 25 | 25 | 25 |
Cross Polar Ratio 0°(dB): | 15 | 15 | 15 | 15 | 15 | 15 |
Intraband Isolation (dB): | >26 | >28 | ||||
Interband Isolation (dB): | >28 | |||||
Max. Power Per Port (W): | 250 | 200 | ||||
Intermodulation IM3 (dBc): | <-150(2×43 dBm) | |||||
Impedance (ohm): | 50 | |||||
Lightning Protection: | DC Grounded | |||||

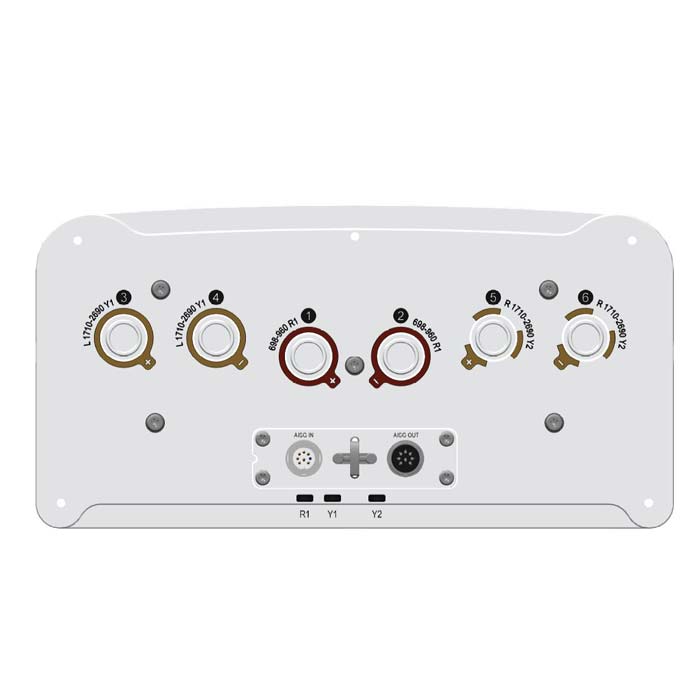

Connector Type: | 6×4.3-10 Female | |||||
Mechanical Data
Antenna Dimensions (mm): | 2495×339×169 |
Packing Dimensions (mm): | 2755×420×255 |
Antenna Net Weight/Bracket (kg): | 27.2/5.9 |
Antenna Gross Weight (kg): | 38.5 |
Radome Material: | Fiberglass |
Pipe OD (mm): | 50-115 |
Mounting Kits (Included): | BA.K.04.00069091, Adjustable Downtilt 0°-10° |
