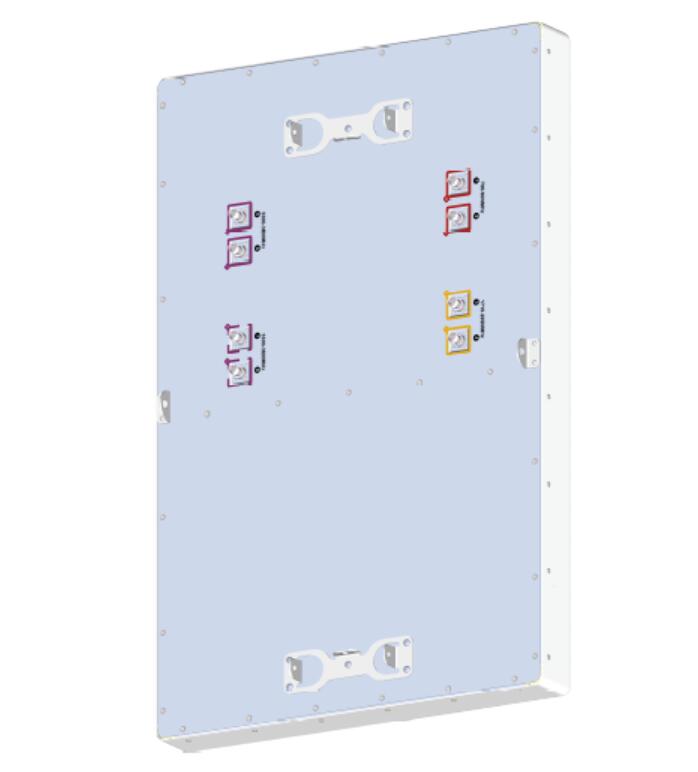

1LB3MB 50° 11.5/11.5/9.5/9.5dBi 8 Ports Stadium Antenna
Electrical Specifications
Frequency Range (MHz): | 790-960(R1) | 1710-2690(Y1) | 2×3300-3800(P1,P2) | |
1710-2170 | 2300-2690 | 3300-3800 | ||
Gain (dBi): | 11.5±0.9 | 10.5±0.7 | 11.5±0.7 | 10.5±0.6 |
Return Loss (dB): | >14 (VSWR<1.5) | |||
Polarization: | ±45° | |||
3dB(j=00) Horizontal Beamwidth (°): | 51 | 52 | 39 | 48 |
20dB(j=00) Horizontal Beamwidth (°): | 84 | 86 | 69 | 80 |
3dB(j=900) Vertical Beamwidth (°): | 50 | 52 | 39 | 48 |
20dB(j=900) Vertical Beamwidth (°): | 84 | 86 | 69 | 80 |
(j=00) Horizontal Sidelobe Suppression (dB): | 20 | 18 | 18 | 17 |
(j=900) Vertical Sidelobe Suppression (dB): | 20 | 18 | 16 | 17 |
Electrical Downtilt (°): | 0 Fixed | |||
Front to Back Ratio at 180±300 (dB): | 28 | 30 | 30 | 30 |
CPR at Boresight(dB): | 20 | 20 | 20 | 18 |
Isolation Port to Port (dB): | >25 | |||
Intermodulation IM3 (dBc): | <-150 (2×43 dBm) | |||
Impedance (ohm): | 50 | |||
Max. Power Per Port (W): | 100 | |||
Lightning Protection: | DC Grounded | |||
Connector Type: | 8×4.3-10 Female | |||
Mechanical Data
Antenna Dimensions (mm): | 1342×876×125 |
Packing Dimensions (mm): | 1470×1025×250 |
Antenna Net Weight/Bracket (kg): | 31.5/5 |
Antenna Gross Weight (kg): | 43 |
Radome Material: | ASA, UV Resistant |
Pipe OD (mm): | 70-114 |
Mounting Kits (Included): | BA.K.04.00003, Fixed Tilt Clamps |
