1LB3MB 65° 16/17.5dBi Multi-band Antenna
Electrical Specifications
Frequency Range (MHz): | 698-960(R1) | 1710-2690(Y1,Y3) | 1710-2690(Y2) | ||||||
698-806 | 806-880 | 880-960 | 1710 -2170 | 2300 -2490 | 2490 -2690 | 1710 -2170 | 2300 -2490 | 2490 -2690 | |
Gain (dBi): | 14.4 ±0.5 | 15.2 ±0.5 | 15.1 ±0.5 | 16.6 ±0.5 | 17.1 ±0.5 | 17.7 ±0.5 | 15.9 ±0.5 | 16.0 ±0.5 | 16.3 ±0.5 |
Return Loss (dB): | >14 (VSWR<1.5) | ||||||||
Polarization: | ±45° | ||||||||
Horizontal 3dB Beamwidth (°): | 69 | 65 | 60 | 69 | 65 | 58 | 69 | 65 | 58 |
Vertical 3dB Beamwidth (°): | 11.0 | 9.5 | 8.5 | 7.5 | 6.5 | 5.2 | 7.0 | 5.7 | 5.3 |
Electrical Downtilt (°): | 0-10 Independently Continuously Adjustable | ||||||||
RET Type: | Cascade SRET, AISG 2.0, Upgradeable | ||||||||
1st Upper Sidelobe Suppression(dB): | 15 | 16 | 15 | 15 | 16 | 15 | 15 | 16 | 14 |
Intraband Isolation (dB): | >26 | ||||||||
>28 | |||||||||
Max. Power Per Port (W): | 250 | 200 | |||||||
Intermodulation IM3 (dBc): | <-150 (2×43 dBm) | ||||||||
Impedance (ohm): | 50 | ||||||||
Lightning Protection: | DC Grounded | ||||||||

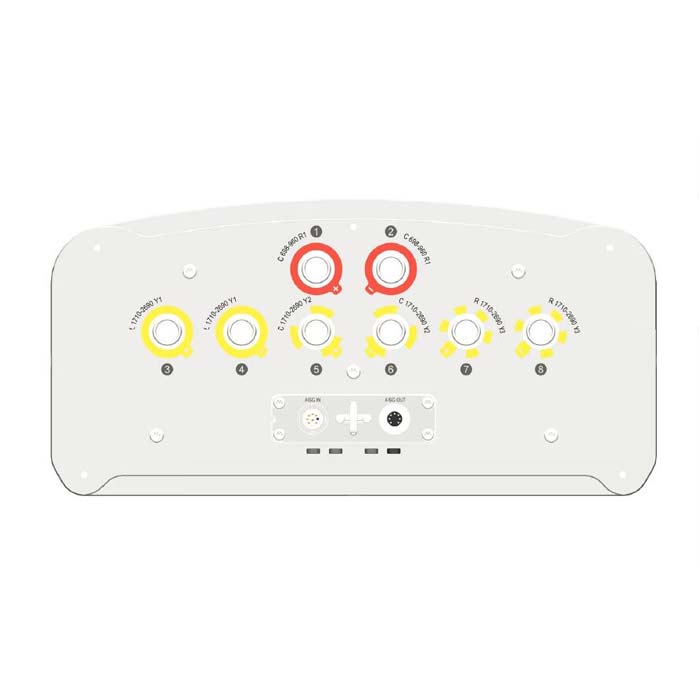

Connector Type: | 8×4.3-10 Female | ||||||||
Mechanical Data

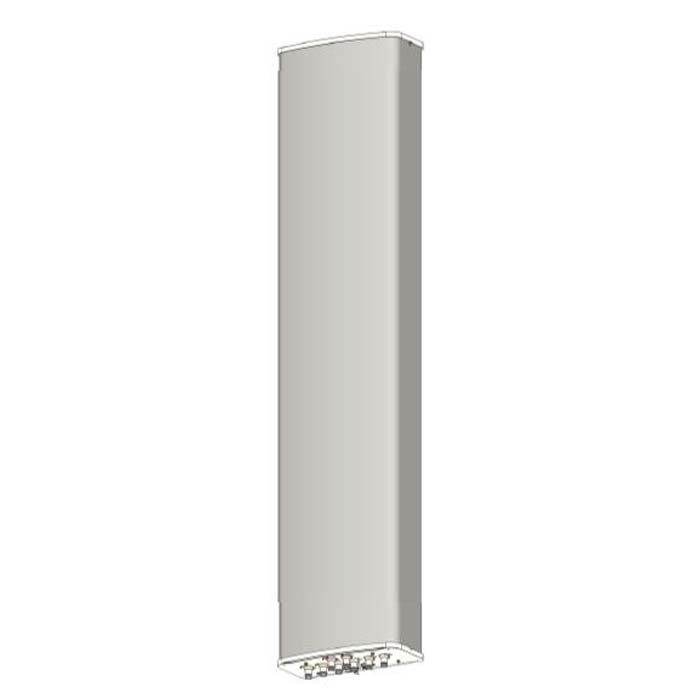

Antenna Dimensions (mm): | 1820×396×190 |
Packing Dimensions (mm): | 2090×485×285 |
Antenna Net Weight/Bracket (kg): | 27.5/5.9 |
Antenna Gross Weight (kg): | 38.5 |
Radome Material: | Fiberglass |
Pipe OD (mm): | 50-115 |
Mounting Kits (Included): | BA.K.04.00069101, Adjustable Downtilt 0°-12° |
