1LB3MB 65° 16.5/18dBi Multi-band Antenna
Electrical Specifications
Frequency Range (MHz): | 698-960(R1) | 1710-2690(Y1,Y2,Y3) | ||||
698-806 | 806-880 | 880-960 | 1710-2170 | 2300-2490 | 2490-2690 | |
Gain (dBi): | 15.5±0.5 | 16.0±0.5 | 16.5±0.5 | 16.8±0.5 | 17.5±0.5 | 17.8±0.5 |
Return Loss (dB): | >14 (VSWR<1.5) | |||||
Polarization: | ±45° | |||||
Horizontal 3dB Beamwidth (°): | 65 | 62 | 60 | 67 | 60 | 58 |
Vertical 3dB Beamwidth (°): | 9.5 | 8.5 | 7.5 | 6.0 | 4.8 | 4.3 |
Electrical Downtilt (°): | 2-12 Independently Continuously Adjustable | 0-10 Independently Continuously Adjustable | ||||
RET Type: | Cascade SRET, AISG 2.0, Upgradeable | |||||
1st Upper Sidelobe Suppression (dB): | 15 | 15 | 15 | 15 | 15 | 15 |
Front to Back Ratio 180±300(dB): | 22 | 24 | 24 | 25 | 25 | 25 |
Cross Polar Ratio 0° (dB): | 15 | 15 | 15 | 15 | 15 | 15 |
Intraband Isolation (dB): | >25 | >25 | ||||
>28 | ||||||
Max. Power Per Port (W): | 250 | 200 | ||||
Intermodulation IM3 (dBc): | <-150 (2×43dBm) | |||||
Impedance (ohm): | 50 | |||||
Lightning Protection: | DC Grounded | |||||

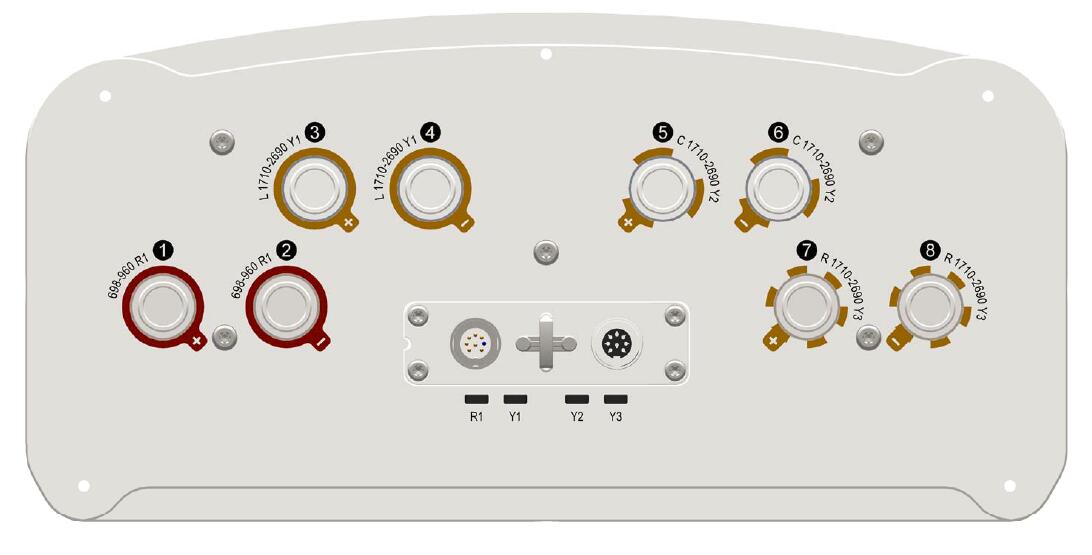

Connector Type: | 8×4.3-10 Female | |||||
Mechanical Data
Antenna Dimensions (mm): | 2495×396×190 |
Packing Dimensions (mm): | 2765×485×285 |
Antenna Net Weight/Bracket (kg): | 34 / 5.9 |
Antenna Gross Weight (kg): | 47 |
Radome Material: | Fiberglass |
Pipe OD (mm): | 50-115 |
Mounting Kits (Included): | BA.K.04.00069091, Adjustable Downtilt 0°-10° |
