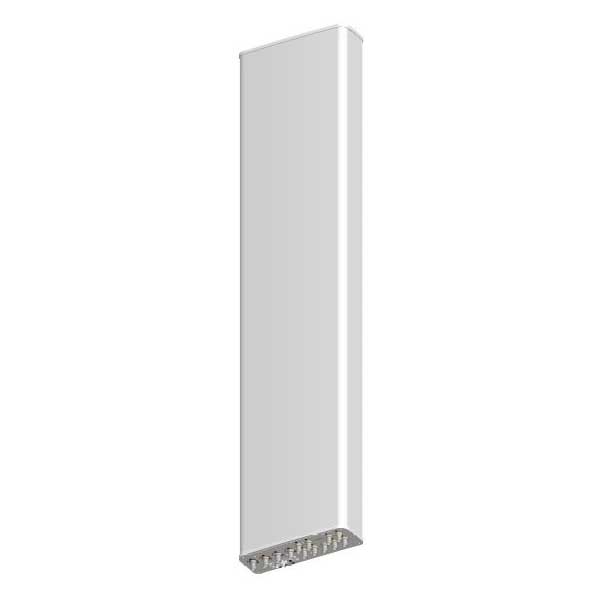

2LB 65° 14/16dBi+2.6GHz TDD Antenna

General

Parameters

Frequency Range (MHz)

2300-2690(Y1)

Polarization

±45°

Electrical Downtilt (°)

2-12, continuously adjustable

Lightning Grounding

DC Grounded

Calibration and

Electrical

Parameters

Coupling Factor between calibration port and each antenna port (dB)

-26±2

Max Amp/Phase Deviation:

≤1.0/ 11°

VSWR:

≤1.5

Co- polarization Isolation between ports (dB):

≥21

Cross-polarization Isolation Between Ports (dB)

≥21

Avg. power per input(W):

≥150

Connecter Type:

9×4.3-10 Female

Radiation

parameters

Frequency Range (MHz)

2300-2400

2400-2690

Single Column

Horizontal 3dB Beamwidth (°):

90

88

Gain(dBi):

14.7±0.5

14.7±0.5

Vertical 3dB Beamwidth (°):

6.7

6.2

Cross Polar Ratio 0° (dB):

≥14

≥14

Front to Back Ratio (dB):

≥23

≥23

First upper Side lobe suppression (dB)

≥13

≥13

Broadcast Beam

Horizontal 3dB Beamwidth (°):

65±10

65±10

Gain(dBi):

16.5±1.0

17.0±1.0

±60° Gain roll-off at sector edge (dB)

12±6

12±6

Vertical 3dB Beamwidth (°):

6.7

6.2

Cross Polar Ratio 0° (dB):

≥15

≥15

Cross Polar Ratio ±60° (dB):

≥8

≥8

Front to Back Ratio (dB):

≥23

≥23

First upper Side lobe suppression (dB)

≥13

≥13

Service Beam @ 0deg

Gain(dB):

20.0±1.0

20.5±1.0

Horizontal 3dB Beamwidth (°):

24

23

Horizontal sidelobe level (°):

≤-12

≤-12

Cross Polar Ratio 0° (dB):

≥15

≥15

Front to Back Ratio (dB):

≥23

≥23

Service Beam@ ±60deg

Gain(dB):

16.5±1.0

17.0±1.0

Horizontal 3dB Beamwidth (°):

26

25

Horizontal sidelobe level (°):

≤-3

≤-3

690-806

806-880

880-960

690-806

806-880

880-960

Gain (dBi):

12.6±0.5

13.4±0.5

13.6±0.5

11.9±0.5

12.6±0.5

13.2±0.5

Return Loss (dB):

>14 (VSWR<1.5)

Polarization:

±45°

Horizontal 3dB Beamwidth (°):

65

60

58

66

61

57

Vertical 3dB Beamwidth (°):

16.4

14.2

12.7

16.9

15.2

13.4

Electrical Downtilt (°):

2-12 Independently Continuously Adjustable

RET Type:

Cascade SRET, AISG 2.0, Upgradeable

Intraband Isolation (dB):

>25

Interband Isolation (dB):

>25

Max. Power Per Port (W):

250

Intermodulation IM3 (dBc):

<-150(2×43 dBm)

Impedance (ohm):

50

Lightning Protection:

DC Grounded

Connector Type:

4×4.3-10Female

Antenna Dimensions (mm):

2095×448x145

Packing Dimensions (mm):

2365x535x240

Antenna Net Weight/Bracket (kg):

30/5.9

Antenna Gross Weight (kg):

42

Radome Material:

Fiberglass

Pipe OD (mm):

50-115

Mounting Kits (Included):

BA.K.04.00069101, Adjustable Downtilt 0°-12°

Humidity:

95%RH@+30℃

Temperature (℃):

-40～+70

Wind Load @150 km/h (N):

Frontal/Lateral/Rearside: 1200/174/1314

Max. Wind velocity(km/h):

200
