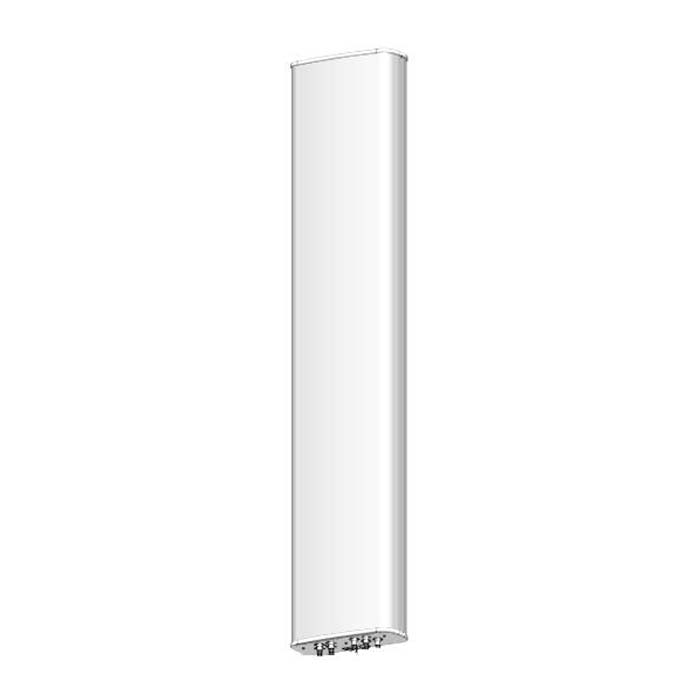

2LB2MB 65° 17/17.5dBi Multi-band Antenna
Electrical Specifications
Frequency Range (MHz): | 698-960(R1,R2) | 1710-2690(Y1,Y2) | |||||
698-806 | 806-880 | 880-960 | 1710-2170 | 2300-2490 | 2490-2690 | ||
Gain (dBi): | 15.5±0.5 | 16.0±0.5 | 16.5±0.5 | 16.3±0.5 | 17.3±0.5 | 17.0±0.5 | |
Return Loss (dB): | >14 (VSWR<1.5) | ||||||
Polarization: | ±45° | ||||||
Horizontal 3dB beamwidth (°): | 69 | 64 | 60 | 69 | 62 | 58 | |
Vertical 3dB beamwidth (°): | 8.5 | 7.0 | 6.5 | 7.5 | 6.0 | 5.3 | |
Electrical Downtilt (°): | 2-12 Independently Continuously Adjustable | 2-12 Independently Continuously Adjustable | |||||
RET Type: | Cascade SRET, AISG 2.0, Upgradeable | ||||||
1st Upper Sidelobe Level (dB): | 15 | 15 | 15 | 15 | 15 | 15 | |
Front to Back Ratio @180±30°(dB): | 22 | 23 | 24 | 25 | 25 | 25 | |
Cross Polar Ratio 0° (dB): | 15 | 15 | 15 | 15 | 15 | 15 | |
>25 | |||||||
Interband Isolation (dB): | >28 | ||||||
Max. Power Per Port (W): | 250 | 200 | |||||
Intermodulation IM3 (dBc): | <-150 (2×43 dBm) | ||||||
Impedance (ohm): | 50 | ||||||
Lightning Protection: | DC Grounded | ||||||

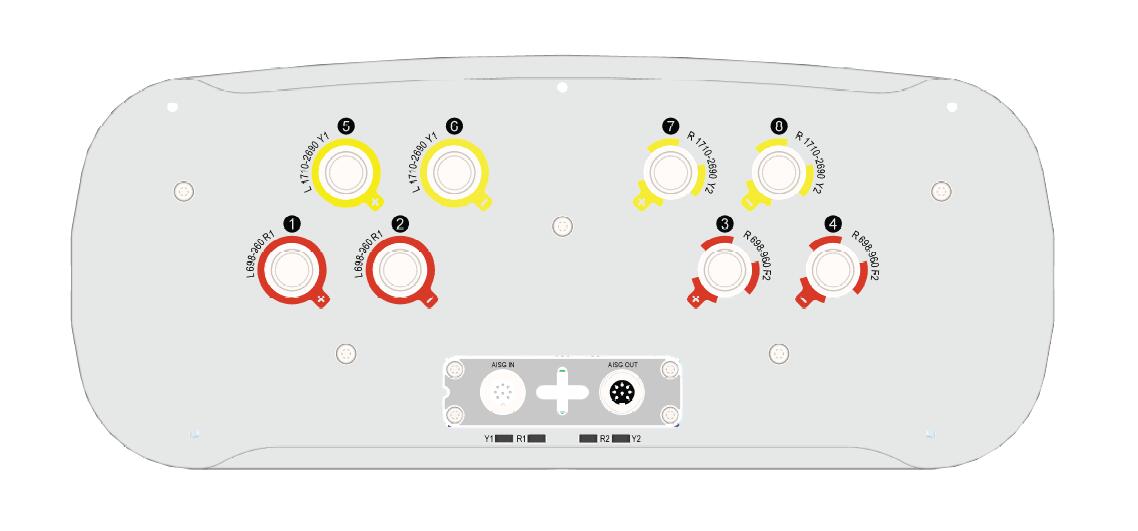

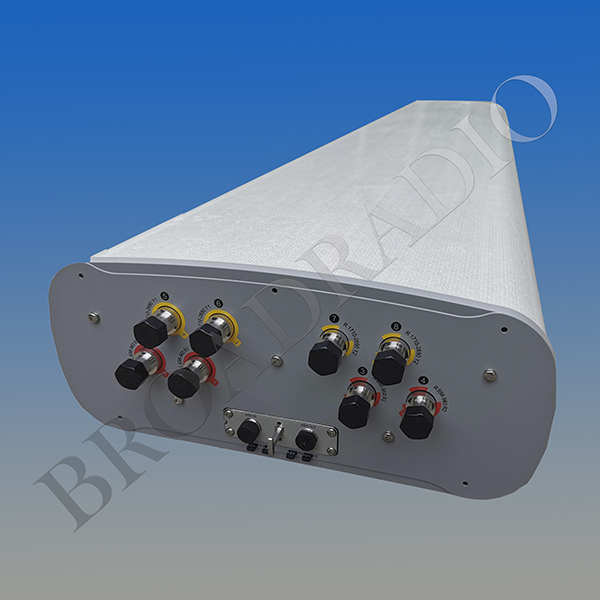

Connector Type: | 8×4.3-10 Female | ||||||
Mechanical Data
Antenna Dimensions (mm): | 2250×448×185 |
Packing Dimensions (mm): | 2520×535×280 |
Antenna Net Weight/Bracket (kg): | 35.9/5.9 |
Antenna Gross Weight (kg): | 47.5 |
Radome Material: | Fiberglass |
Pipe OD (mm): | 50-114 |
Mounting Kits (Included): | BA.K.04.00069291, Adjustable Downtilt 0°-8° |
