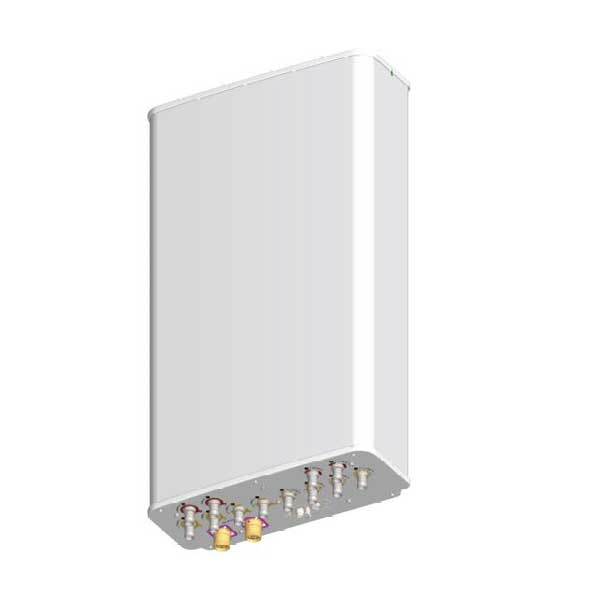

2LB4MB 65° 12/13/13.5dBi+3.5GHz TDD Antenna

General

Parameters

Frequency range (MHz):

3300-3800(P1)

Polarization:

±45

Electrical downtilt (°):

2-12, continuously adjustable

Grounding:

DC Grounded

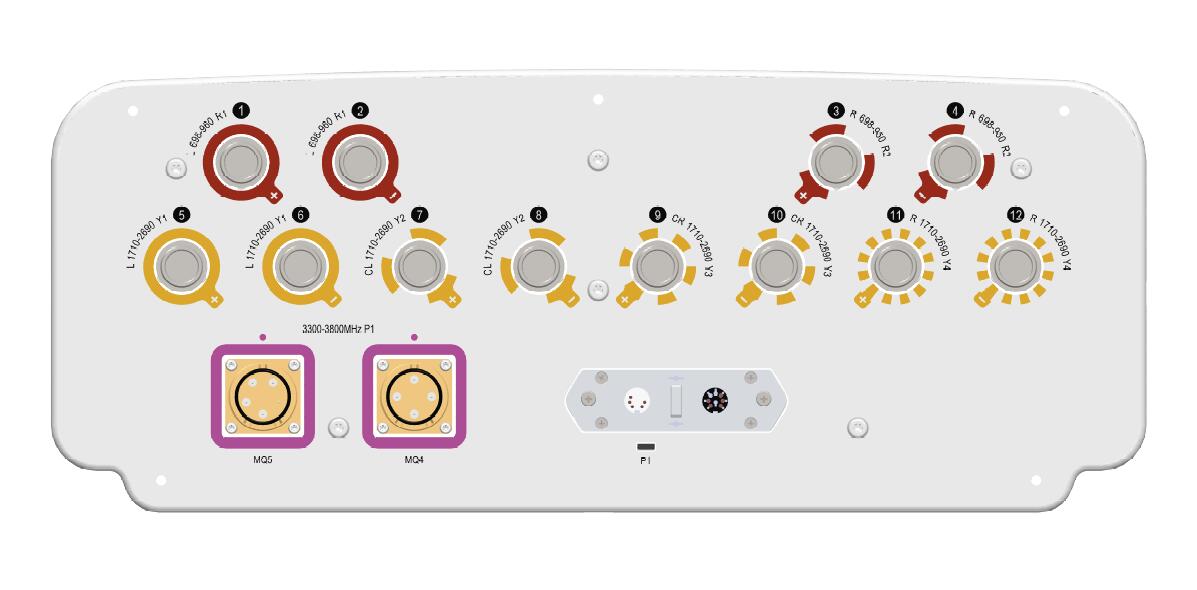

Connector Type:

1xMQ5,1xMQ4

Calibration and

electrical

parameters

Coupling factor between calibration port and each antenna port (dB) :

-26±2

Max Amp/phase Deviation:

<1.2dB/12°

VSWR:

<1.5

Max. Power Per Port (W):

40

Isolation (dB):

>20

Radiation

parameters

Single Column

Horizontal 3dB Beamwidth (°):

70±10

Vertical 3dB Beamwidth (°):

9.5

Front to Back Ratio (dB):

23

Gain (dBi):

13.2±0.5

Cross polar ratio (dB):

>15 (0°)/>8 (±60°)

Broadcast Beam

Horizontal 3dB Beamwidth (°):

65±10

Gain (dBi):

14.7±0.5

Front to Back Ratio (dB):

25

Vertical 3dB Beamwidth (°):

9.5

Cross polar ratio (dB):

>15 (0°)/>8 (±60°)

1^st Upper Sidelobe Suppression (dB):

>14

Service Beam @ 0deg

Gain (dBi):

18.2±0.5

Horizontal 3dB Beamwidth (°):

20

Horizontal Sidelobe Level (dB):

<-12

Cross polar ratio (0°) (dB):

15

Front to Back Ratio (dB):

25

Frequency Range (MHz):

698-960(R1,R2)

1710-2690(Y1,Y2,Y3,Y4)

698-806

806-880

880-960

1710-2170

2300-2490

2490-2690

Gain (dBi):

11.0±0.6

11.0±0.5

11.3±0.8

11.3±0.6

12.5±0.5

13.0±0.5

Return Loss (dB):

>14 (VSWR<1.5)

Polarization:

±45°

Horizontal 3dB beamwidth (°):

64

67

70

65

62

58

Vertical 3dB beamwidth (°):

28

24

22

25

22

20

1^stUpper Sidelobe Suppression(dB):

>11

>11

>11

>12

>12

>12

Front to Back Ratio(dB):

>23

>25

>23

>25

>26

>24

Electrical Downtilt (°):

3 Fixed

Polarization Isolation (dB):

Polarization Isolation (dB):

>23

Interband Isolation (dB):

>23

Max. Power Per Port (W):

150

100

Intermodulation IM3 (dBc):

<-150 (2×43dBm)

Impedance (ohm):

50

Lightning Protection:

 DC Grounded

Connector Type:

12x4.3-10 Female

Packing Dimensions (mm):

1155x580×285

Antenna Net Weight/Bracket (kg):

18/5.9

Antenna Gross Weight (kg):

27.5

Radome Material:

Fiberglass

Pipe OD (mm):

50-115

Mounting Kits (Included):

BA.K.04.00069381, Adjustable Downtilt 0°-30°
