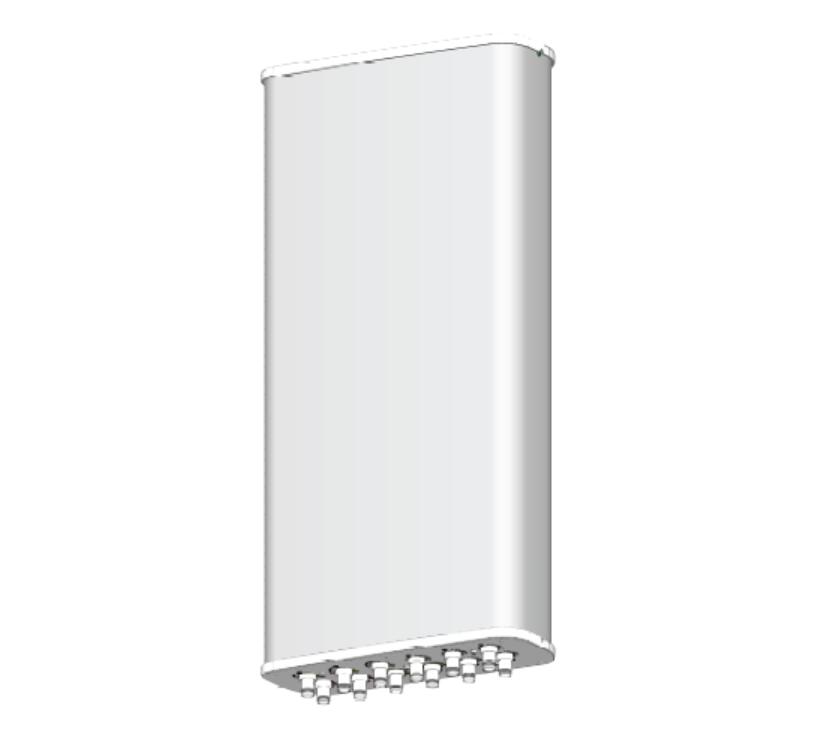

2LB4MB 65° 12/14dBi Multi-band Antenna
Electrical Specifications
698-960(R1,R2) | 1695-2690(Y1,Y3) | 1695-2690(Y2,Y4) | |||||||
698-806 | 806-880 | 880-960 | 1695 -2170 | 2300 -2490 | 2490 -2690 | 1695 -2170 | 2300 -2490 | 2490 -2690 | |
Gain (dBi): | 11.0 ±0.6 | 11.5 ±0.8 | 12.0 ±0.8 | 12.2 ±0.8 | 12.8 ±0.8 | 13.2 ±0.8 | 12.0 ±0.8 | 12.6 ±0.8 | 12.9 ±0.8 |
Return Loss (dB): | >14 (VSWR<1.5) | ||||||||
Polarization: | ±45° | ||||||||
Horizontal 3dB Beamwidth (°): | 69 | 63 | 58 | 68 | 63 | 58 | 68 | 63 | 58 |
Vertical 3dB Beamwidth (°): | 25 | 23 | 20 | 21.5 | 18.5 | 16.5 | 21.5 | 18.5 | 16.5 |
Electrical Downtilt (°): | 3 Fixed | ||||||||
Front to Back Ratio (dB): | 22 | 23 | 23 | 25 | 25 | 25 | 25 | 25 | 25 |
Intraband Isolation (dB): | >23 | ||||||||
Interband Isolation (dB): | >23 | ||||||||
Total Power for the Antenna (W) | 250 | 200 | |||||||
Intermodulation IM3 (dBc): | <-150(2×43 dBm) | ||||||||
Impedance (ohm): | 50 | ||||||||
Lightning Protection: | DC Grounded | ||||||||

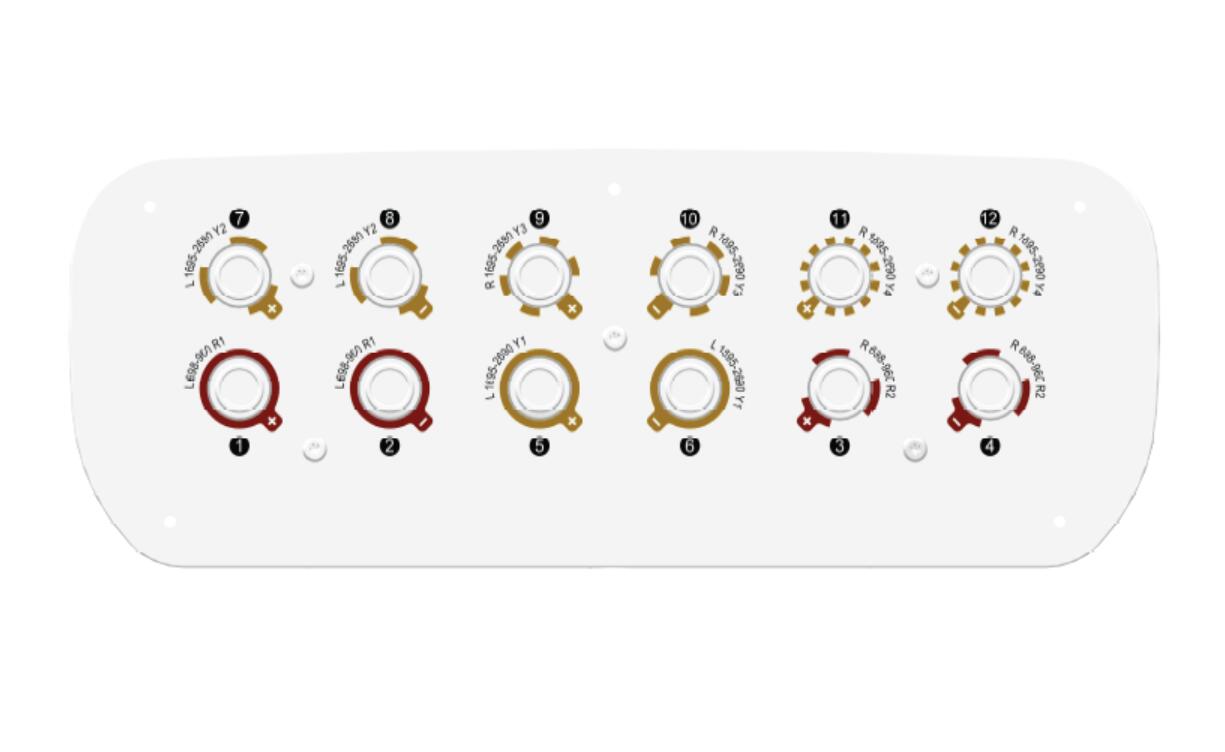

Connector Type: Connector Type: | 12×4.3-10 Female | ||||||||
Mechanical Data
Antenna Dimensions (mm): | 895×428×160 |
Packing Dimensions (mm): | 1155×515×250 |
Antenna Net Weight /Bracket (kg): | 13/5.9 |
Antenna Gross Weight (kg): | 20.7 |
Radome Material: | Fiberglass |
Pipe OD (mm): | 50-115 |
Mounting Kits (Included): | BA.K.04.00069381, Adjustable Downtilt 0°-30° |
