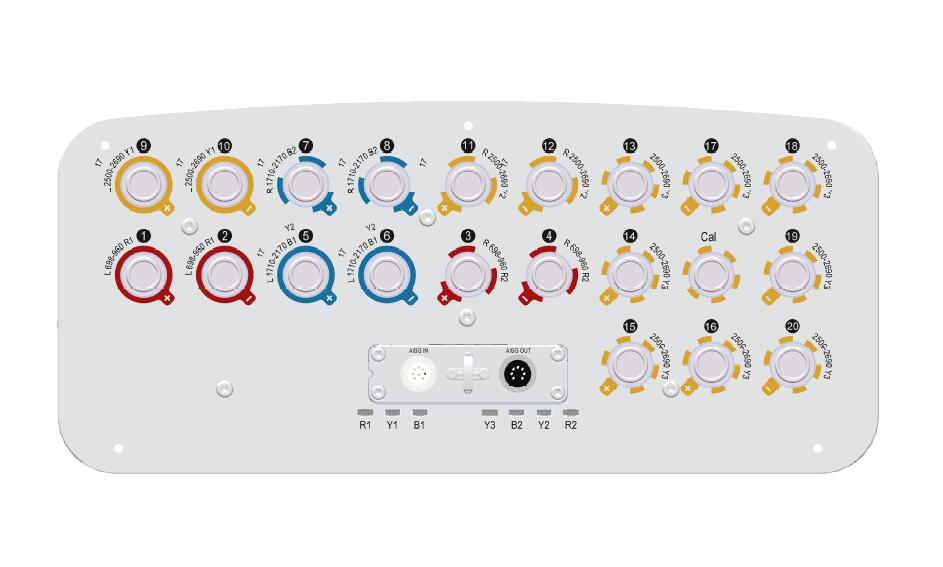

2LB4MB 65° 15/16.5/17dBi+2.6GHz TDD Antenna
General Electrical Properties | ||
General Parameters | Frequency Range (MHz) | 2500-2690(Y3) |
Polarization | ±45° | |
Electrical Downtilt (°) | 2-12 , continuously adjustable | |
Lightning Grounding | DC Grounded | |
Calibration and Electrical Parameters s | Coupling Factor between calibration port and each antenna port (dB) | -26±2 |
Max Amp/Phase Deviation: | ≤1.0/ 10° | |
VSWR: | ≤1.5 | |
Co- polarization Isolation between ports (dB): | ≥20 | |
Cross-polarization Isolation Between Ports (dB) | ≥20 | |
Avg. power per input(W) | ≥150 | |
Connecter Type: | 9×4.3-10 Female | |
Beamforming Electrical Properties | |||
Radiation parameters | Frequency Range (MHz) | 2500-2690(Y3) | |
Single Column | Horizontal 3dB Beamwidth (°): | 73±10 | |
Gain(dBi): | 14.5±1 | ||
Vertical 3dB Beamwidth (°): | 7.5 | ||
Cross Polar Ratio 0° (dB): | ≥15 | ||
Front to Back Ratio (dB): | ≥23 | ||
First upper Side lobe suppression (dB) | ≥11 | ||
Broadcast Beam | Horizontal 3dB Beamwidth (°): | 65±10 | |
Gain(dBi): | 16.2±0.5 | ||
±60° Gain roll-off at sector edge (dB) | 12±6 | ||
Vertical 3dB Beamwidth (°): | 7.5 | ||
Cross Polar Ratio 0° (dB): | ≥13 | ||
Cross Polar Ratio ±60° (dB): | ≥4 | ||
Front to Back Ratio (dB): | ≥23 | ||
First upper Side lobe suppression (dB) | ≥13 | ||
Service Beam @ 0deg | 0° Gain(dB): | 19.5±0.5 | |
0° Horizontal 3dB Beamwidth (°): | 23 | ||
0° Horizontal sidelobe level (°): | ≤-12 | ||
Cross Polar Ratio 0° (dB): | ≥15 | ||
Front to Back Ratio (dB): | ≥23 | ||
Frequency Range (MHz): | 698-960(R1,R2) | 1710-2170(B1,B2) | 2500-2690 (Y1,Y2)
| ||||
698-790 | 790-862 | 880-960 | 1710-1880 | 1880-2025 | 2025-2170 | ||
Gain (dBi): | 13.7±0.5 | 14.0±0.5 | 14.6±0.7 | 14.9±0.5 | 14.7±0.5 | 14.7±0.5 | 15.5±0.7 |
Return Loss (dB): | >14 (VSWR<1.5) | ||||||
Polarization: | ±45° | ||||||
Horizontal 3dB Beamwidth (°): | 66 | 65 | 63 | 65 | 67 | 65 | 59 |
Vertical 3dB Beamwidth (°): | 12 | 11 | 9.7 | 8.0 | 7.7 | 6.8 | 5.6 |
Electrical Downtilt (°): | 2-12 Independently Continuously Adjustable
| ||||||
Intraband Isolation (dB): | >25 | ||||||
Interband Isolation (dB): | >25 | ||||||
Intermodulation IM3 (dBc): | 250 | 200 | |||||
Impedance (ohm): | <-150 | ||||||
Lightning Protection: | 50 | ||||||
Connector Type: | DC Grounded | ||||||
Intermodulation IM3 (dBc): | 12×4.3-10 Female | ||||||
Mechanical Data | |
Antenna Dimensions (mm): | 2095×448×200 |
Packing Dimensions (mm): | 2360×535×295 |
Antenna Net Weight/Bracket (kg): | 42 / 6.8 |
Antenna Gross Weight (kg): | 55.5 |
Radome Material: | FRP |
Pipe OD (mm): | 50-125 |
Mounting Kits (Included): | Adjustable Downtilt 0°-12° |
Humidity: | 95%RH@+30℃ |
Temperature (℃): | -40～+70 |
Wind Load @150 km/h (N): | Frontal/Lateral/Rearside: 1214/290/1314 |
Max. Wind velocity(km/h): | 200 |
