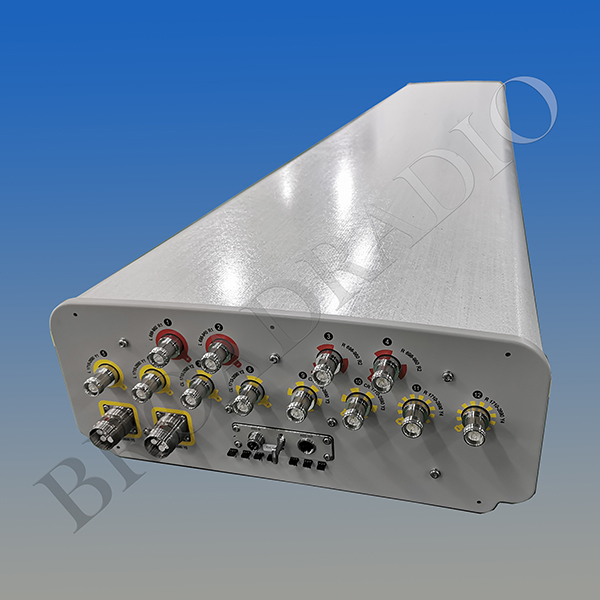

2LB4MB 65° 16/18dBi+2.6GHz TDD Antenna

General

parameters

Frequency range (MHz):

2300-2690(Y5)

Polarization:

±45

Electrical downtilt (°):

2-12, continuously adjustable

Grounding:

DC Grounded

Connector Type:

1xMQ5,1xMQ4

Calibration and

electrical

parameters

Coupling factor between calibration port and each antenna port (dB) :

-26±2

Max Amp/phase Deviation:

<1.2dB/12°

VSWR:

<1.5

Max. Power Per Port (W):

150

Isolation (dB):

>20

Radiation

parameters

Single Column

Horizontal 3dB Beamwidth (°):

80±20

Vertical 3dB Beamwidth (°):

7

Front to Back Ratio (dB):

>23

Gain (dBi):

15.3±0.5

Cross polar ratio (dB):

>13 (0°)/ >5 (±60°)

Broadcast Beam

Horizontal 3dB Beamwidth (°):

65±10

Gain (dBi):

17.0±0.5

Front to Back Ratio (dB):

25

Vertical 3dB Beamwidth (°):

7

Cross polar ratio (dB):

>15 (0°)/ >8 (±60°)

1^st Upper Sidelobe Suppression (dB):

>14

Service Beam @ 0deg

Gain (dBi):

21±0.5

Horizontal 3dB Beamwidth (°):

25

Horizontal Sidelobe Level (dB):

<-12

Cross polar ratio (0°) (dB):

18

Front to Back Ratio (dB):

25

Frequency Range (MHz):

698-960(R1,R2)

1710-2690(Y2,Y3)

1710-2690(Y1,Y4)

698-806

806-880

880-960

1710

-2170

2300

-2490

2490

-2690

1710

-2170

2300

-2490

2490

-2690

Gain (dBi):

15.0

±0.5

15.6

±0.5

16.0

±0.5

16.3

±1.0

17.7

±0.5

17.8

±0.5

16.1

±1.0

17.8

±0.5

18.0

±0.5

Return Loss (dB):

>14 (VSWR<1.5)

Polarization:

±45°

Horizontal 3dB beamwidth (°):

71

65

60

64

60

59

68

61

61

Vertical 3dB beamwidth (°):

9

8

7.5

6

5

4.5

6

5

4.5

Electrical Downtilt (°):

2-12 Independently Continuously Adjustable

Front to Back Ratio @180±30° (dB):

22

23

23

23

25

25

23

25

25

1^st Upper Sidelobe Suppression (dB):

15

16

16

13

15

15

13

16

15

Cross Polar Ratio 0° (dB):

15

15

15

14

15

15

14

15

15

Intraband Isolation (dB):

>25

Interband Isolation (dB):

>25

Max. Power Per Port (W):

250

200

Intermodulation IM3 (dBc):

<-150 (2×43dBm)

Impedance (ohm):

50

Lightning Protection:

DC Grounded

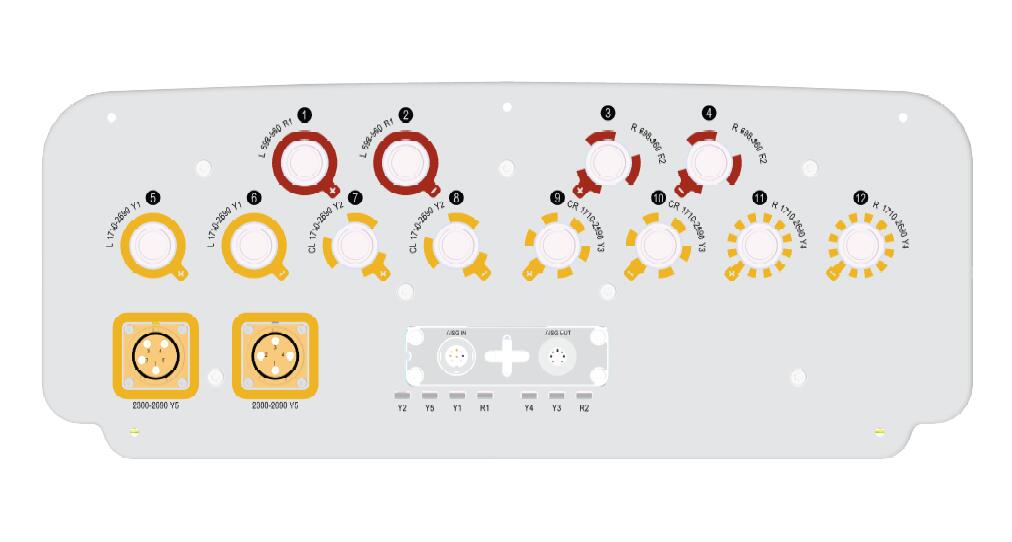

Connector Type:

12x4.3-10 Female

Packing Dimensions (mm):

2925×585×290

Antenna Net Weight/Bracket (kg):

56/5.7

Antenna Gross Weight (kg):

64

Radome Material:

Fiberglass

Pipe OD (mm):

70-115

Mounting Kits (Included):

BA.K.04.00069471, Adjustable Downtilt0-8(0°-8°in 1°steps)
