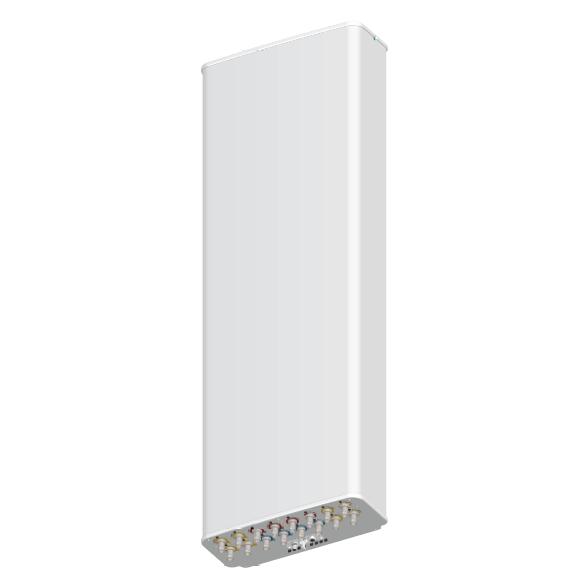

2LB6MB 65° 13/16.5/17/16.5dBi Multi-band Antenna

694-806

806-880

880-960

1710-2170

2300-2490

2490-2690

Gain (dBi):

12.2±0.5

12.9±0.5

12.9±0.5

16.3±0.5

16.6±0.5

16.7±0.5

Return Loss (dB):

>14 (VSWR<1.5)

Polarization:

±45°

Horizontal 3dB Beamwidth (°):

66

63

64

68

66

61

Vertical 3dB Beamwidth (°):

18.7

16.7

15.4

7.7

6.4

5.5

Electrical Downtilt (°):

2-16 Independently Continuously Adjustable

2-12 Independently Continuously Adjustable

RET Type:

Cascade SRET, AISG 2.0, Upgradeable

1^st Upper Sidelobe Suppression (dB):

13

13

13

15

15

15

Intraband Isolation (dB):

>25

Interband Isolation (dB):

>25

Max. Power Per Port (W):

250

200

Intermodulation IM3 (dBc):

<-150(2×43 dBm)

Impedance (ohm):

50

Lightning Protection:

DC Grounded

1710-1880

1880-2025

2025-2170

2490-2690

Gain (dBi):

15.5±0.5

15.6±0.5

15.6±0.5

15.7±0.5

Return Loss (dB):

>14 (VSWR<1.5)

Polarization:

±45°

Horizontal 3dB Beamwidth (°):

69

68

66

65

Vertical 3dB Beamwidth (°):

8.0

7.5

7.0

5.5

Electrical Downtilt (°):

2-12 Independently Continuously Adjustable

RET Type:

Cascade SRET, AISG2.0, Upgradeable

1^st Upper Sidelobe Suppression (dB):

14

15

14

15

Intraband Isolation (dB):

>25

Interband Isolation (dB):

>25

Max. Power Per Port (W):

                200

200

Intermodulation IM3 (dBc):

<-150 (2×43 dBm)

Impedance (ohm):

50

Lightning Protection:

DC Grounded

Packing Dimensions (mm):

1805×580×290

Antenna Net Weight/Bracket (kg):

31/5.9

Antenna Gross Weight (kg):

42.5

Radome Material:

Fiberglass

Pipe OD (mm):

50-114

Mounting Kits (Included):

BA.K.04.00069131, Adjustable Downtilt 0°-16°

Connector Type:

16×4.3-10 Female
