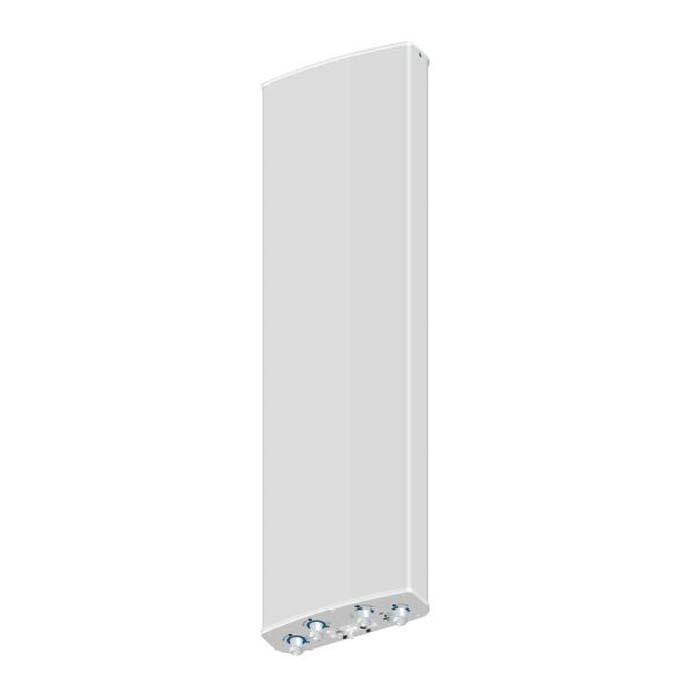

2MB 35° 20dBi Dual Beam Antenna
Electrical Specifications
Frequency Range (MHz): | 1710-2170(B1,B2) | ||||||||
1710-1880 | 1880-2025 | 2025-2170 | |||||||
Gain (dBi): | 18.5±0.5 | 18.8±0.5 | 19.7±0.5 | ||||||
Return Loss (dB): | >14 (VSWR<1.5) | ||||||||
Polarization: | ±45° | ||||||||
Horizontal 3dB Beamwidth (°): | 2×37 | 2×32 | 2×29 | ||||||
Horizontal Beam Pointing (°) | -30, +30 | -27, +27 | -25, +25 | ||||||
Vertical 3dB Beamwidth (°): | 8.7 | 8.0 | 7.5 | ||||||
Electrical Downtilt (°): | 0-10 Independently Continuously Adjustable | ||||||||
1st Upper Sidelobe Suppression(dB): | 0° | 5° | 10° | 0° | 5° | 10° | 0° | 5° | 10° |
17 | 16 | 15 | 17 | 16 | 15 | 17 | 16 | 15 | |
Front to Back Ratio(dB): | 25 | 25 | 25 | ||||||
Horizontal Sidelobe Suppression(dB): | 12 | 12 | 12 | ||||||
Polarizations Isolation(dB) : | >28 | ||||||||
Max. Power Per Port (W): | 200 | ||||||||
Intermodulation IM3 (dBc): | <-150(2×43 dBm) | ||||||||
Impedance (ohm): | 50 | ||||||||
Lightning Protection: | DC Grounded | ||||||||

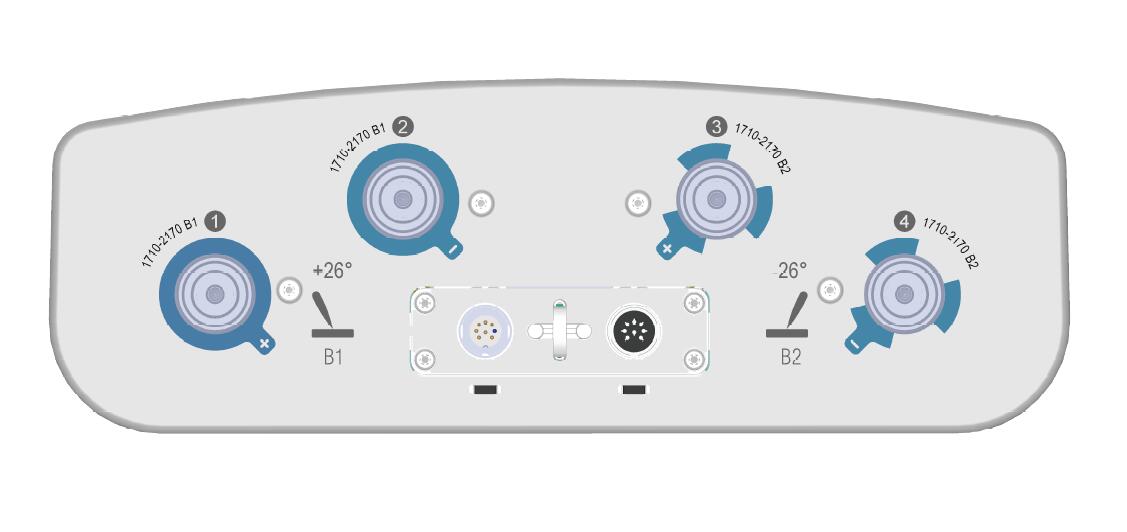

Connector Type: | 4×7/16 DIN Female | ||||||||
Mechanical Data
Antenna Dimensions (mm): | 1362×370×124 |
Packing Dimensions (mm): | 1680×435×200 |
Antenna Net Weight/Bracket (kg): | 16/5.9 |
Antenna Gross Weight (kg): | 25 |
Radome Material: | Fiberglass |
Pipe OD (mm): 抱杆直径Pipe OD (mm): | 50-115 |
Mounting Kits (Included): | BA.K.04.00069141, Adjustable Downtilt 0°-18° |
