2MB 65° 15dBi Single Band Antenna
Electrical Specifications
Frequency Range (MHz): | 2×1710-2690(Y1,Y2) | |||
1710-2170 | 2300-2490 | 2490-2690 | ||
Gain (dBi): | 13.8±0.5 | 14.5±0.5 | 14.8±0.5 | |
Return Loss (dB): | >14 (VSWR<1.5) | |||
Polarization(°): | ±45 | |||
Horizontal 3dB Beamwidth (°): | 68 | 63 | 58 | |
Vertical 3dB Beamwidth (°): | 15.5 | 12.5 | 11.5 | |
Electrical Downtilt (°): | 2-12 Independently Continuously Adjustable | |||
RET Type: | RET Cascade SRET, AISG 2.0, Upgradeable | |||
1st Upper Sidelobe Suppression (dB): | 15 | 15 | 15 | |
Front to Back Ratio (dB): | >25 | >25 | >25 | |
Cross Polar Ratio 0° (dB): | 15 | 15 | 15 | |
Cross Polar Ratio ±60° (dB): | >10 | >8 | >8 | |
Isolation Port to Port(dB): | >25 | |||
Impedance (ohm): | 50 | |||
Intermodulation IM3 (dBc): | <-150 (2×43dBm) | |||
Max. Power Per Port (W): | 200 | |||
Lightning Protection: | DC Grounded | |||

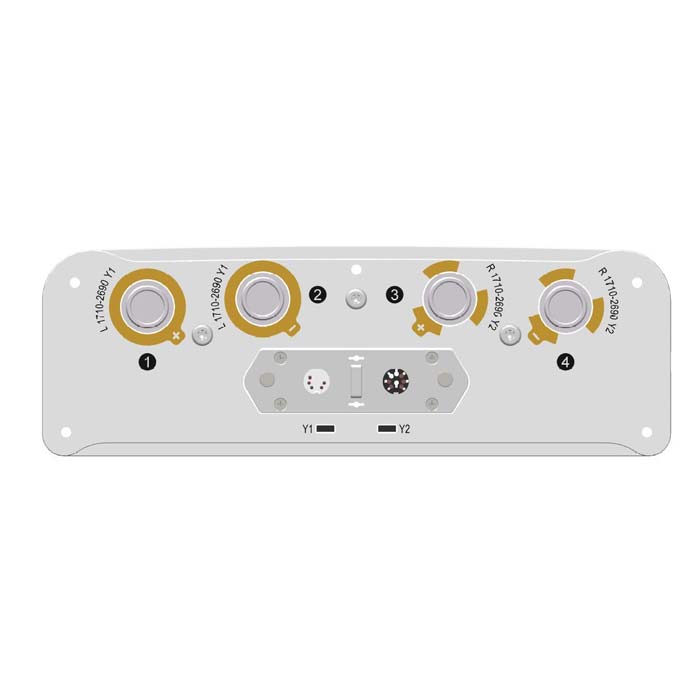

Connector Type: | 4×4.3-10 Female | |||
Mechanical Data
Antenna Dimensions (mm): | 695×280×90 |
Packing Dimensions (mm): | 1015×365×185 |
Antenna Net Weight/Bracket (kg): | 7.5/3.65 |
Antenna Gross Weight (kg): | 13.5 |
Radome Material: | Fiberglass |
Pipe OD (mm): | 50-115 |
Mounting Kits (Included): | BA.K.04.00069501, Adjustable Downtilt 0°-30° |
