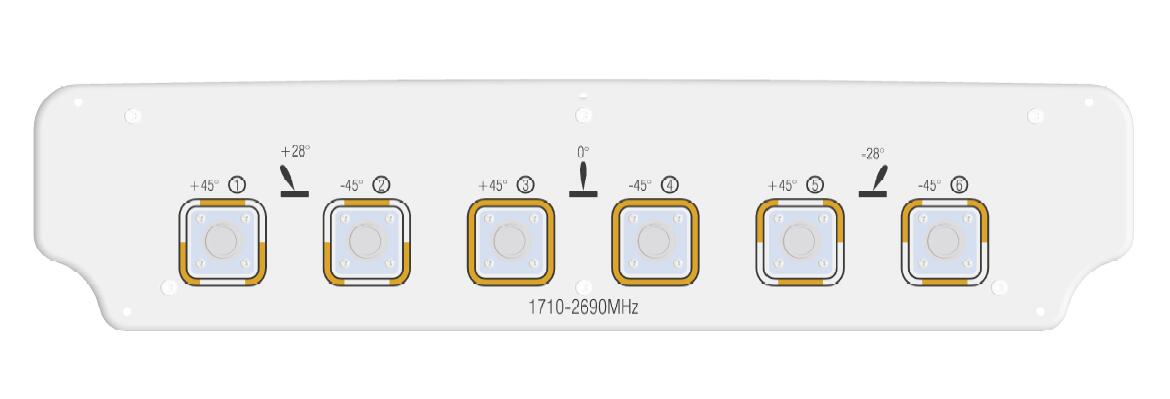

3MB 16° 19.5 dBi Triple Beam Antenna
Electrical Specifications
Frequency Range (MHz): | Beam 2 (Port 3/4, Middle) | |||||
1710-2300 | 2300-2690 | |||||
1710-1880 | 1880-2025 | 2025-2300 | 2300-2450 | 2450-2550 | 2550-2690 | |
Gain (dBi): | 17.8±0.5 | 18.7±0.5 | 19.6±0.5 | 19.4±0.5 | 18.7±0.5 | 19.4±0.5 |
Horizontal 3dB beamwidth (°): | 20.9 | 19.0 | 17.4 | 16.0 | 15.7 | 14.8 |
Horizontal Beam Pointing (°): | 0 | 0 | 0 | 0 | 0 | 0 |
Vertical 3dB beamwidth (°): | 15.6 | 13.8 | 12.5 | 11.4 | 10.9 | 10.4 |
Frequency Range (MHz): | Beam 1 (Port 1/2, Left)/ Beam 3 (Port 5/6, Right) | |||||||||||
1710-2300 | 2300-2690 | |||||||||||
1710-1880 | 1880-2025 | 2025-2300 | 2300-2450 | 2450-2550 | 2550-2690 | |||||||
B1 | B3 | B1 | B3 | B1 | B3 | B1 | B3 | B1 | B3 | B1 | B3 | |
Gain (dBi): | 17.1±0.5 | 17.0±0.5 | 17.7±0.5 | 17.7±0.5 | 18.6±0.5 | 18.6±0.5 | 17.4±0.5 | 17.9±0.5 | 16.8±0.5 | 17.1±0.5 | 16.8±0.5 | 16.9±0.5 |
Horizontal 3dB beamwidth (°): | 22.7 | 22.7 | 20.6 | 20.5 | 18.7 | 18.8 | 17.3 | 17.2 | 16.1 | 16.1 | 15.0 | 15.0 |
Horizontal Beam Pointing (°): | 38 | -37 | 34 | -34 | 31 | -30 | 28 | -27 | 27 | -26 | 25 | -24 |
Vertical 3dB beamwidth (°): | 18.7 | 16.6 | 17.1 | 14.9 | 15.6 | 13.2 | 14.3 | 12.1 | 13.7 | 11.5 | 13.1 | 10.9 |
Frequency Range (MHz): | All Beams (Port 1 to 6) | |
1710-2300 | 2300-2690 | |
Return Loss (dB): | >14 (VSWR<1.5) | |
Polarization: | ±45° | |
Electrical Downtilt (°): | 6 Fixed | 6 Fixed |
1st Upper Sidelobe Suppression (dB): | 18 | 16 |
Front to Back Ratio @180±30°(dB): | 33 | 34 |
Isolation Between Polarizations (dB): | 25 | |
Max. Power Per Port (W): | 200 | |
Total Power for the Antenna(W): | 800 | |
Intermodulation IM3 (dBc): | <-150 (2×43 dBm) | |
Impedance (ohm): | 50 | |
Lightning Protection: | DC Grounded | |
Connector Type: | 6x4.3-10 Female | |
Mechanical Data
Antenna Dimensions (mm): | 814×600×130 |
Packing Dimensions (mm): | 956×720×236 |
Antenna Net Weight (kg): | 20/5.7 |
Antenna Gross Weight (kg): | 30 |
Radome Material: | Fiberglass |
Pipe OD (mm): | 70-114 |
Mounting Kits (Included): | BA.K.04.00032， Adjustable Downtilt 0°-10°(0,3°-10°in 1°Steps) |
