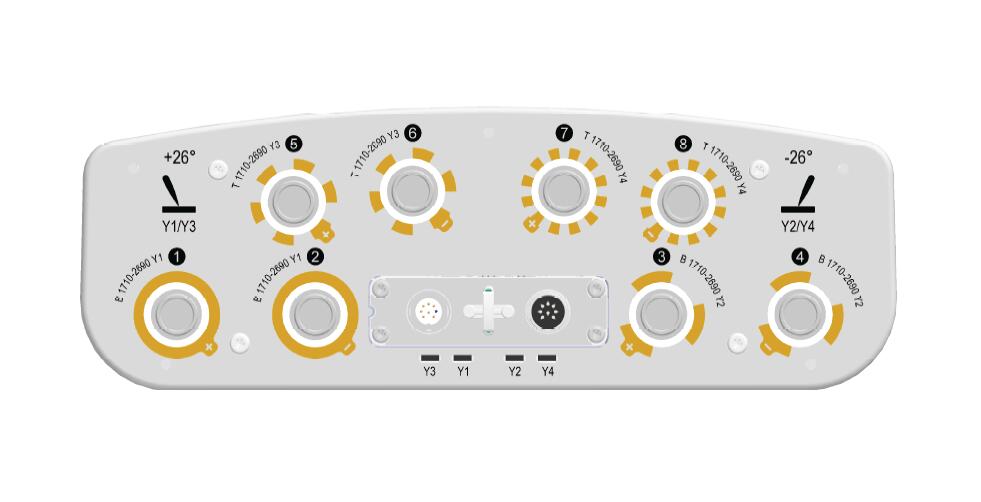

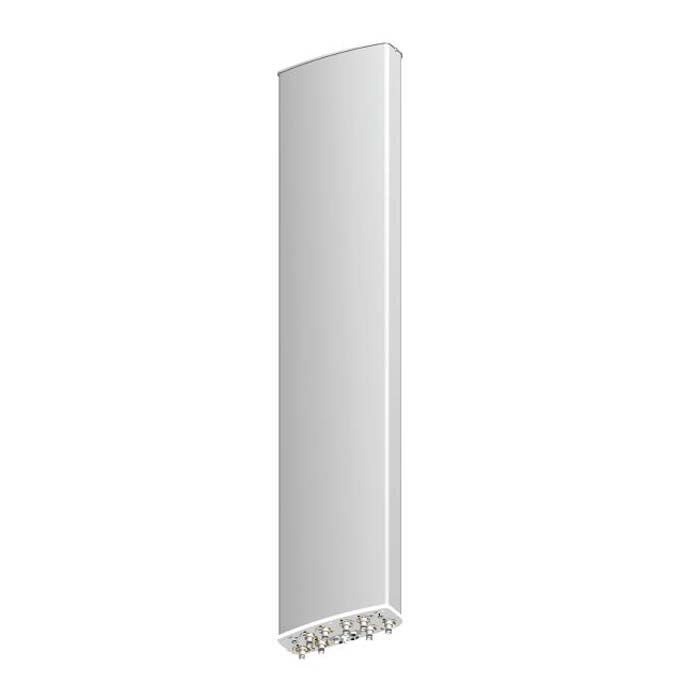

4MB 32° 18.5dBi Dual Beam Antenna
Electrical Specifications
Frequency Range (MHz): | 2×1710-2690(Y1,Y2) | 2×1710-2690(Y3,Y4) | ||||
1710-1880 | 1880-2170 | 2300-2690 | 1710-1880 | 1880-2170 | 2300-2690 | |
Gain (dBi): | 16.9±0.5 | 18.1±0.5 | 18.7±0.5 | 16.7±0.5 | 17.8±0.5 | 18.4±0.5 |
Return Loss (dB): | >14(VSWR<1.5) | |||||
Polarization: | ±45° | |||||
Horizontal 3dB Beamwidth (°): | 2×31 | 2×27 | 2×23 | 2×30 | 2×28 | 2×23 |
Horizontal Beam Pointing (°) : | -28, +28 | -25, +25 | -21, +21 | -28, +28 | -25, +25 | -21, +21 |
Vertical 3dB Beamwidth (°): | 9.1 | 8.1 | 6.4 | 9.2 | 8.0 | 6.3 |
Electrical Downtilt (°): | 2-10 Independently Continuously Adjustable | |||||
1st Upper Sidelobe Suppression (dB): | 16 | 16 | ||||
Horizontal Sidelobe Suppression(dB): | 18 | 18 | 19 | 18 | 18 | 19 |
Polarizations Isolation(dB) : | >28 | >28 | ||||
Intermodulation IM3 (dBc): | <-150 (2×43 dBm) | |||||
Impedance (ohm): | 50 | |||||
Max. Power Per Port (W): | 200 | |||||
Lightning Protection: | DC Grounded | |||||
Connector Type: | 8×4.3-10 Female | |||||
Mechanical Data
Antenna Dimensions (mm): | 1895×370×124 |
Packing Dimensions (mm): | 2263×436×170 |
Antenna Net Weight/Bracket (kg): | 24/5.7 |
Antenna Gross Weight (kg): | 35.1 |
Radome Material: | Fiberglass |
Pipe OD (mm): | 70-114 |
Mounting Kits (Included): | BA.K.04.00011, Adjustable Downtilt 0-12° |
