Electrical Specifications
Frequency Range (MHz): | 2×1710-2170(B1,B2) | 2×2500-2690(Y1,Y4) | ||
1710-1880 | 1920-2025 | 2025-2170 | 2500-2690 | |
Gain (dBi): | 15.7±0.5 | 16.0±0.5 | 16.3±0.5 | 16.5±0.5 |
Return Loss (dB): | >14 (VSWR<1.5) | |||
Polarization: | ±45° | |||
Horizontal 3dB Beamwidth (°): | 69 | 66 | 63 | 58 |
Vertical 3dB Beamwidth (°): | 8.0 | 7.5 | 7.0 | 5.5 |
Electrical Downtilt (°): | 0-10 Independently Continuously Adjustable | |||
RET Type: | Cascade SRET, AISG2.0, Upgradeable | |||
1st Upper Sidelobe Suppression (dB): | 15 | 15 | 15 | 15 |
Front to Back Ratio (dB): | 24 | 24 | 24 | 24 |
Cross Polar Ratio 0° (dB): | 15 | 15 | 15 | 15 |
Isolation Port to Port (dB): | >26 | |||
Max. Power Per Port (W): | 200 | |||
Intermodulation IM3 (dBc): | <-150 (2×43 dBm) | |||
Impedance (ohm): | 50 | |||
Lightning Protection: | DC Grounded | |||
Frequency Range (MHz): | 2×2500-2690(Y2,Y3) |
Gain (dBi): | 16.5±0.5 |
Return Loss (dB): | >14 (VSWR<1.5) |
Polarization: | ±45° |
Horizontal 3dB beamwidth (°): | 58 |
Vertical 3dB beamwidth (°): | 6.2 |
Electrical Downtilt (°): | 0-10 Independently Continuously Adjustable |
1st Upper Sidelobe Suppression (dB): | 15 |
Front to Back Ratio (dB): | 24 |
Cross Polar Ratio 0° (dB): | 15 |
Isolation Port to Port (dB): | >26 |
Max. Power Per Port (W): | 200 |
Intermodulation IM3 (dBc): | <-150 (2×43dBm) |
Impedance (ohm): | 50 |
Lightning Protection: | DC Grounded |
Mechanical Data

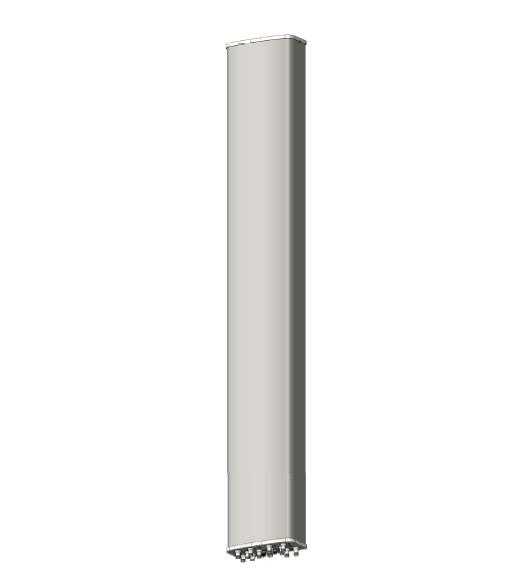

Antenna Dimensions (mm): | 2200×320×140 |
Packing Dimensions (mm): | 2460×405×230 |
Antenna Net Weight/Bracket (kg): | 23.5 / 5.9 |
Antenna Gross Weight (kg): | 33.5 |

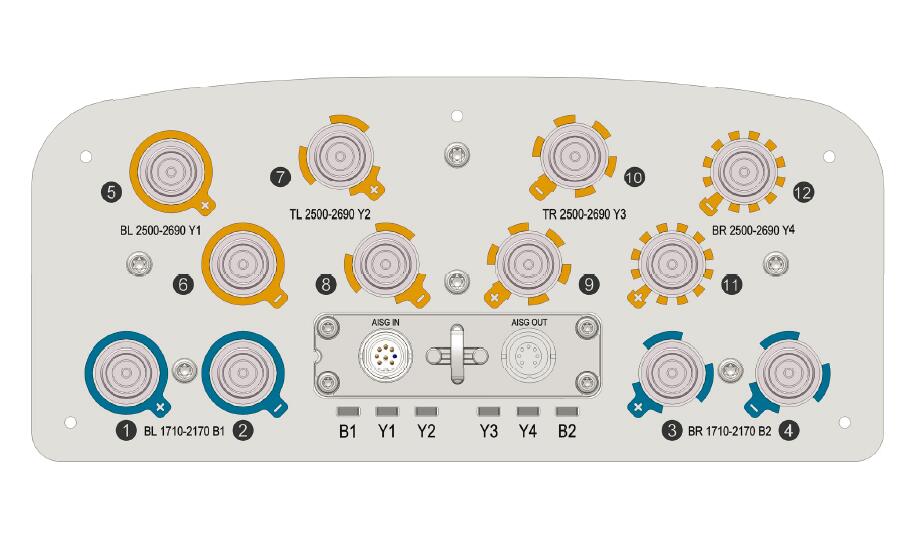

Connector Type: | 12×4.3-10 Female |
Radome Material: | Fiberglass |
Pipe OD (mm): | 50-115 |
Mounting Kits (Included): | BA.K.04.00069071, Adjustable Downtilt 0°-8° |
